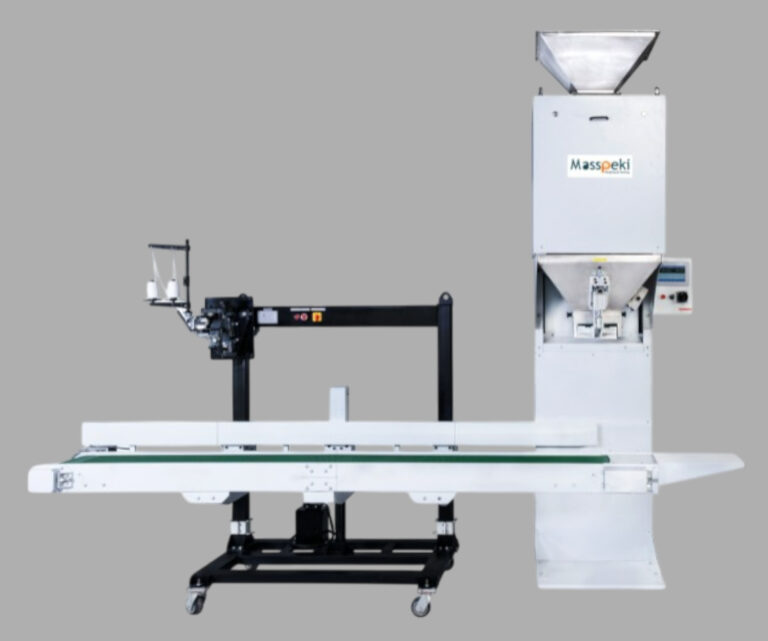

Grain Packing Machines - SINGLE HEAD
The Masspeki packing machine is designed for efficiently packing a wide range of free-flowing solid grains and granules.
Automatic Gravimetric Filling Machine
Product – Description
The Masspeki packing machine is designed for efficiently packing a wide range of free-flowing solid grains and granules. This semi-automatic packing solution utilizes a highly accurate load cell to precisely weigh the material and dispense it seamlessly into bags, ensuring reliability and consistency in every operation.
Our packing machine features a sleek touchscreen LCD display with an intuitive interface, making operation and navigation effortless. Designed with advanced weighing technology, it delivers unmatched accuracy and reliability. The cutting-edge software and thoughtfully crafted UI/UX ensure a seamless user experience, reducing the need for extensive training while maximizing efficiency and precision.
This packing machine is ideal for handling grocery items like rice, sugar, wheat, pulses, chana dal, toor dal, green peas, and similar products. With its user-friendly design, you can effortlessly set the desired weight and begin operation with ease.
Operation of the Masspeki Semi-Automatic Packing Machine
The operator positions the bag in the clamping station, where it is pneumatically secured. The machine then fills the bag with the pre-set quantity of material and releases it onto the belt conveyor. As the bag moves along the conveyor, it reaches the stitching machine. The operator simply guides the bag through the stitching process for a secure and efficient seal.
Preset Option
Operator can select mode without getting into precise setting for different weighment
Accept/Reject Indication
Easy elimination of Under/Over weight bags
Bag Height Adjustment
Simple hydraulic lever to adjust conveyor height
Fault Diagnosis
Built-in self diagnosis function to prevent down time
Ethernet Connectivity
Remote monitoring of packing progress
Lot Production
Easy to fix lot target and count
Password Protection
Only authorized person can access ad change settings
Bag Options
Plain / Fold Over / Crepe Tape / PPTape Closure
Specification
| Specification | Details |
|---|---|
| Model | MWB 25D - Single Head |
| Material | Free Flow Grain |
| Measurement type | Load Cell - Beam Type |
| Weighing Control | Automatic Weighing by PLC controller |
| Accuracy | 0.1% ±FSD |
| Least Count | 10g |
| Capacity | 360 - 400 Bags/hours |
| Power Supply | 1ɸ/ 230V / 50Hz, 1sq.mm wire |
| Set Range | 5Kg - 50Kg |
| Air Pressure Required | 5 to 6 Bar |
| Air Consumption | 1CFM |
| Dimension | 920L x 780B x 2920H |
| Color | RAL 7035 |
| Specification | Details |
|---|---|
| Model | MWB 25D - Single Head |
| Material | Free Flow Grain |
| Measurement Type | Load Cell - Beam Type |
| Weighing control | Automatic Weighing by PLC Controller |
| Accuracy | 0.1% ±FSD |
| Least Count | 10g |
| Capacity | 360 - 400 Bags/hours |
| Power Supply | 1ɸ/ 230V / 50Hz, 1sq.mm wire |
| Set Range | 5Kg - 50Kg |
| Air Pressure Required | 5 to 6 Bar |
| Air Consumption | 1CFM |
| Dimension | 920L x 780B x 2920H |
| Color | RAL 7035 |

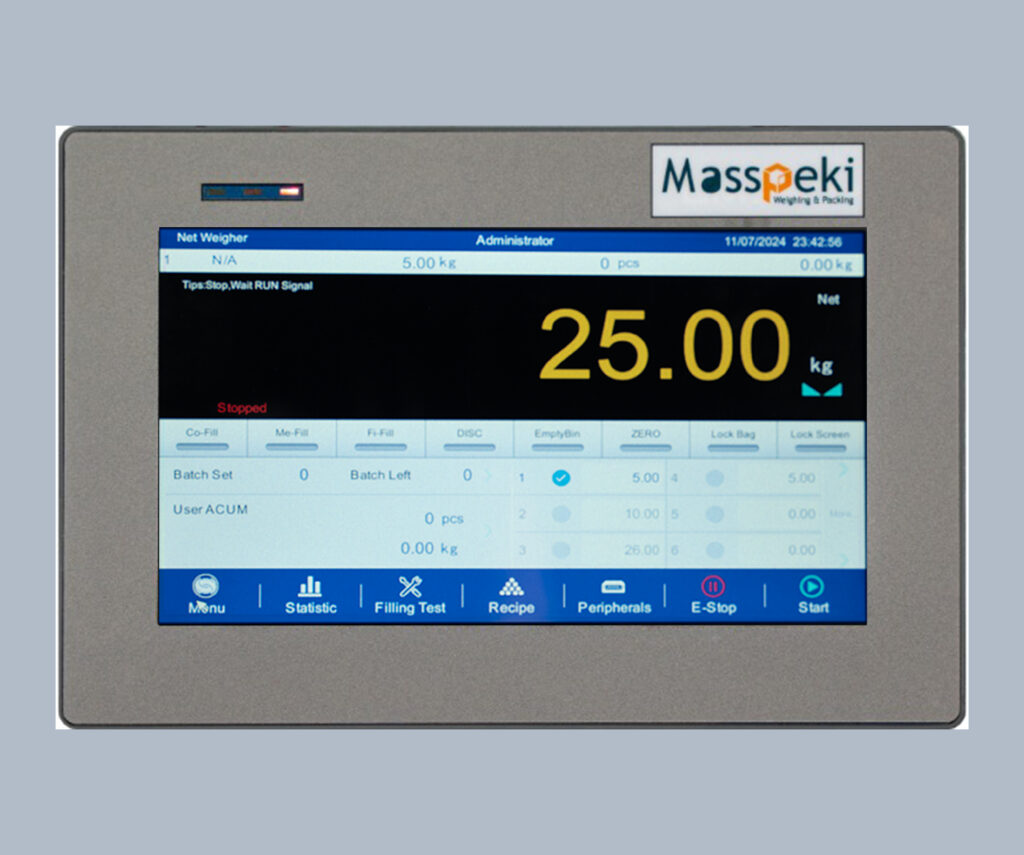

UI Display
